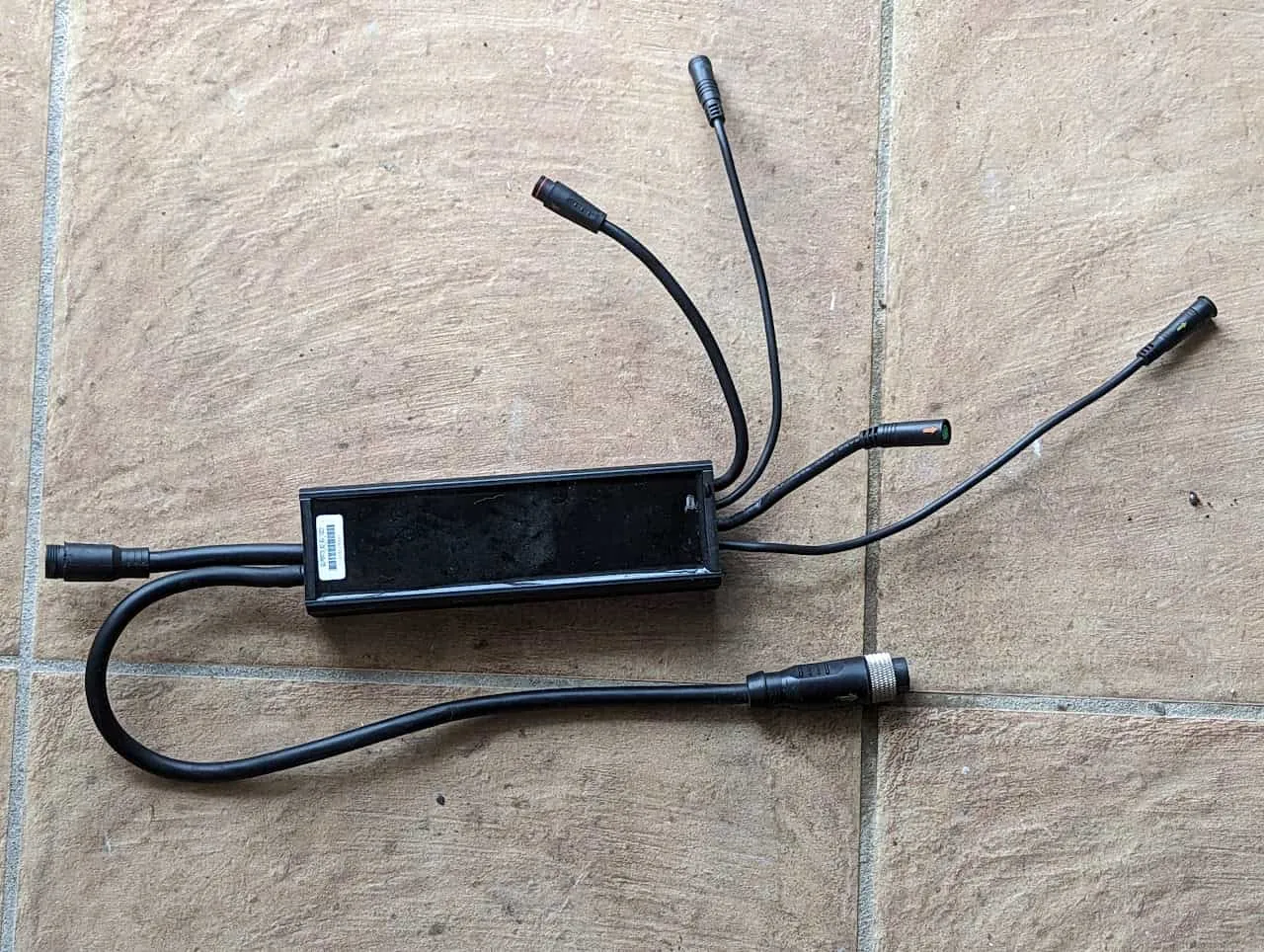

Contoller
This is the main controller linking the battery, motor, controls, and peripherals.
Marked: "SUPER73_S2_EU_V203" "210120391"

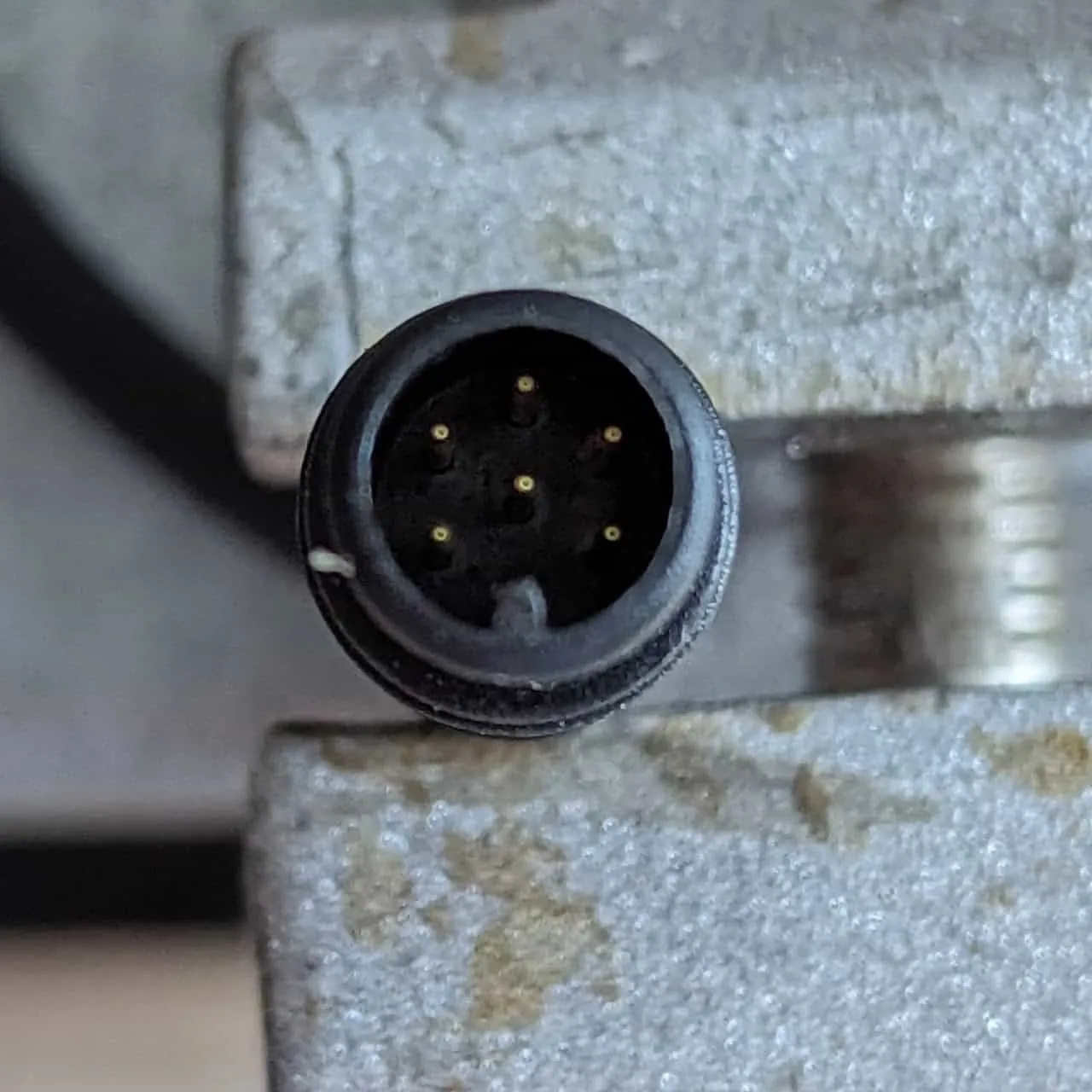

Debug connector
Battery + (common with 12V Module 4)
Unknown
GND
CAN H
CAN L
Unknown

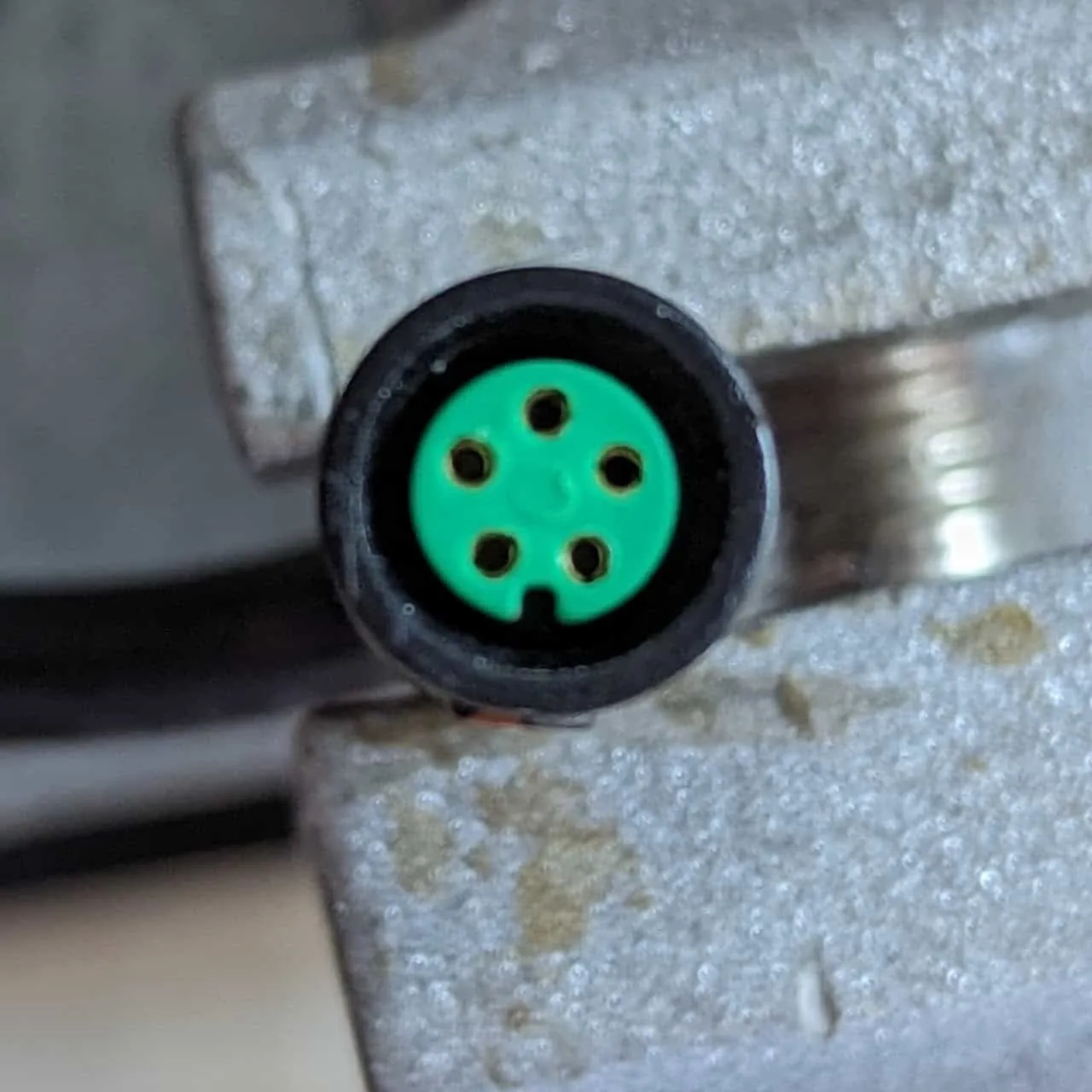

Unknown - Blue
CAN L - Yellow
GND - Black
Battery + (common with debug 5) - White
CAN H - Green

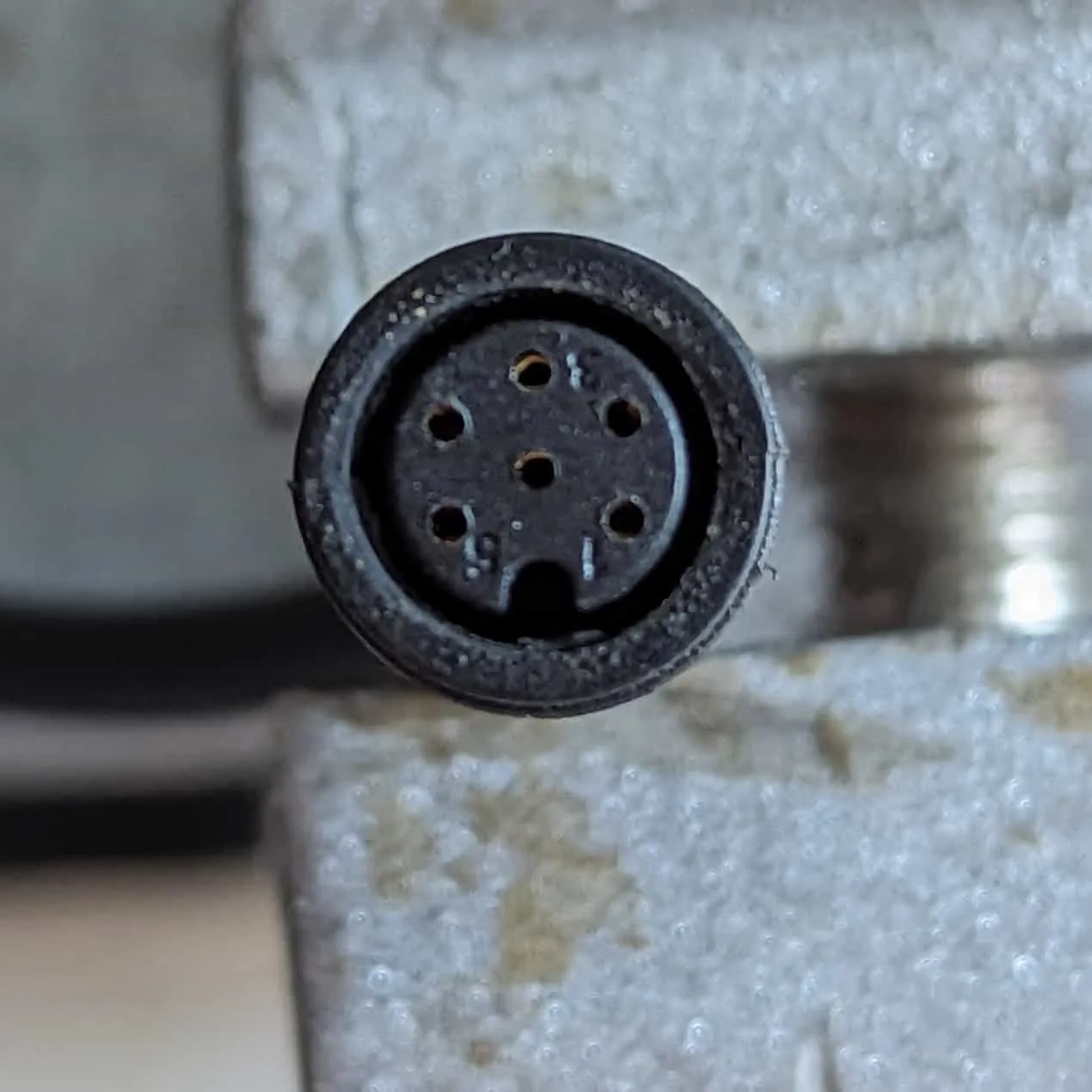

PAS sensor connector
Unknown (~5V)
Unknown (~5V)
Unknown
Unknown (~6V)
GND
Unkown (GND?)

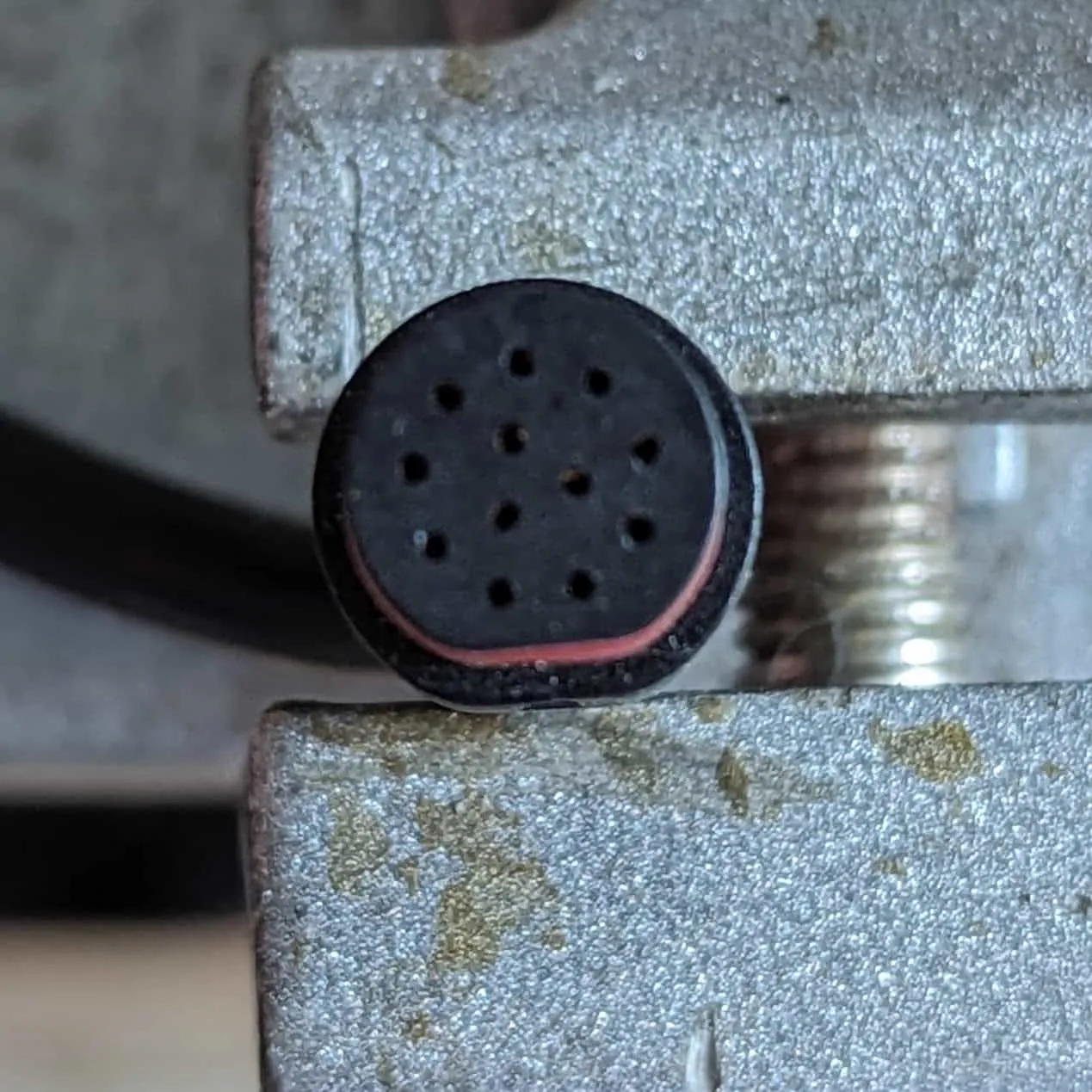

CAN H - Display 4 - Yellow
Throttle signal - Throttle 2 - Blue
Signal 1 - Horn 1 - Orange
Signal 6 - Display 1 - Purple
Signal 2 - Horn 2 - Green
CAN L - Display 5 - Grey
5V - Throttle 3 - Pink
GND - Throttle 1 / Horn 5 / Display 3 / Brake 1 - Black
Signal 7 - Brake 2 - Red
Signal 3 - Horn 3 - White
Signal 5 - Display 2- Black w/ white stripe
Signal 4 - Horn 4 - Brown

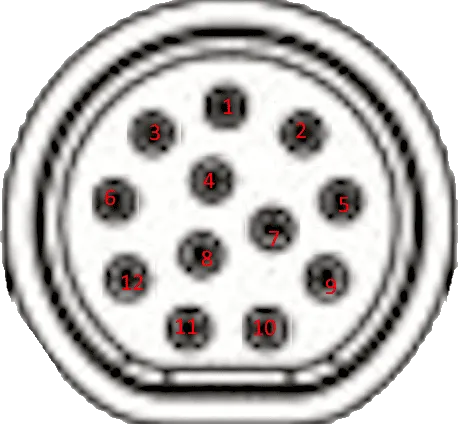

See image.

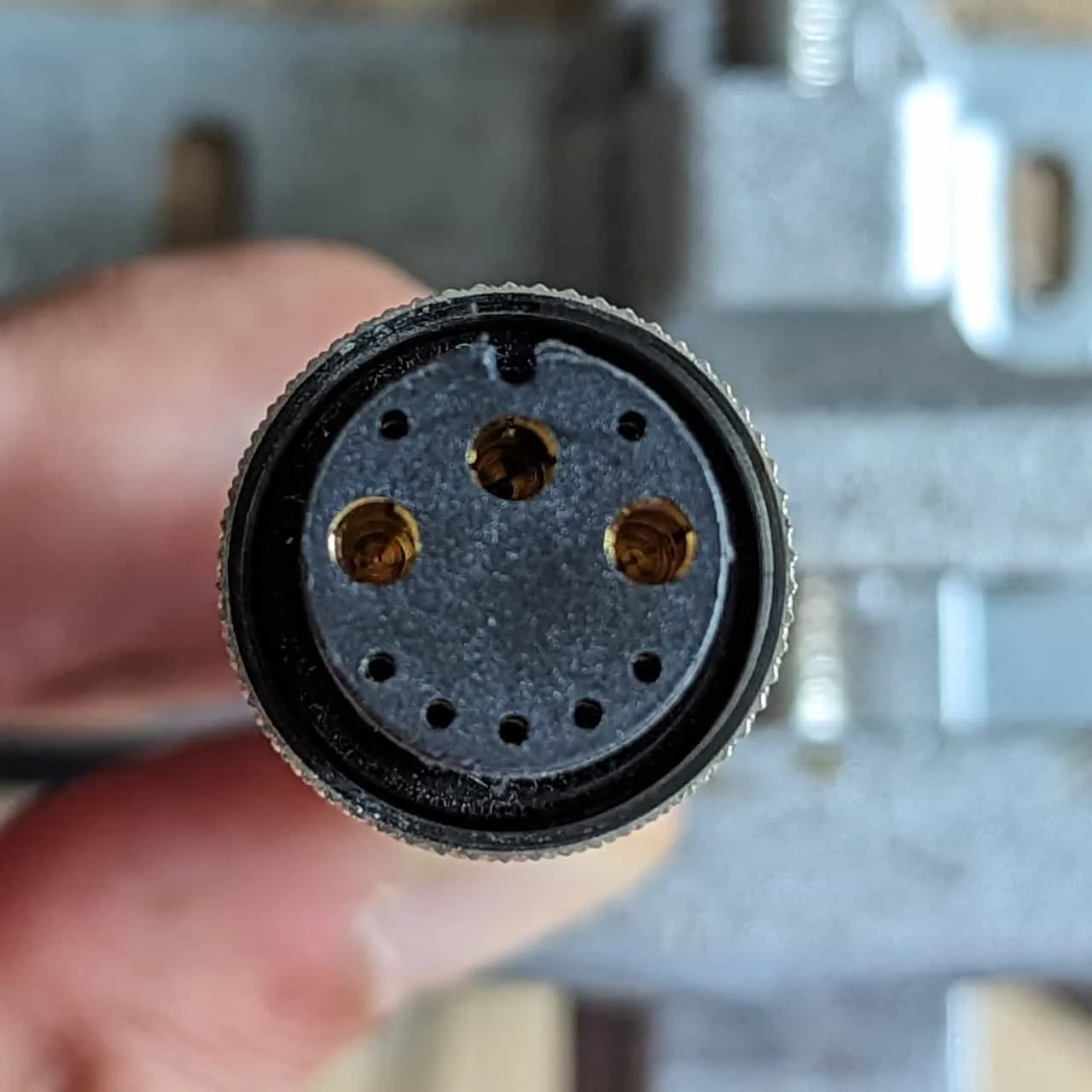

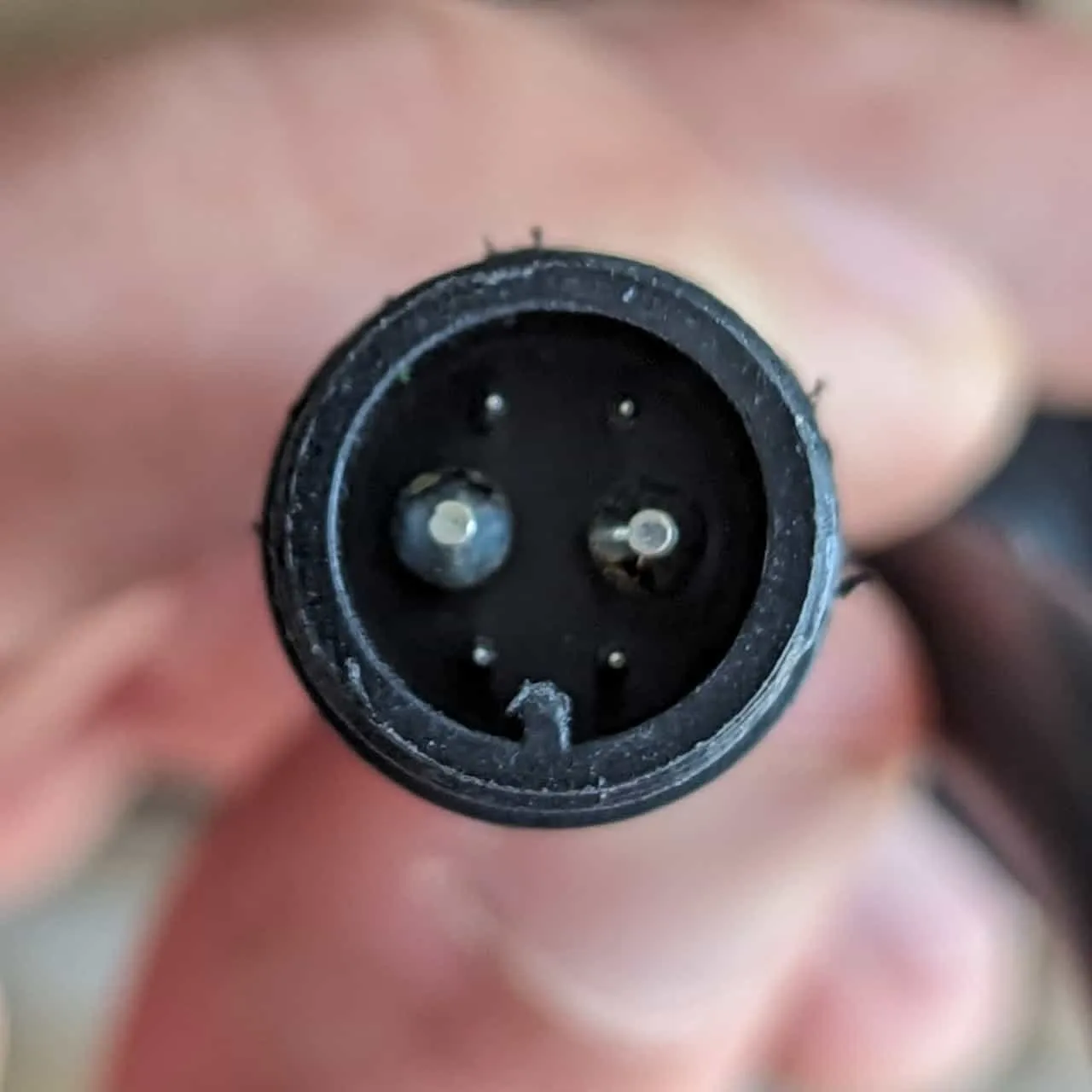

Battery connector
Brown - Unused
Orange - Unused
Red - Positive
Black - Negative
Green - CAN H
Blue - CAN L
