Battery

S & R Series "Newport"

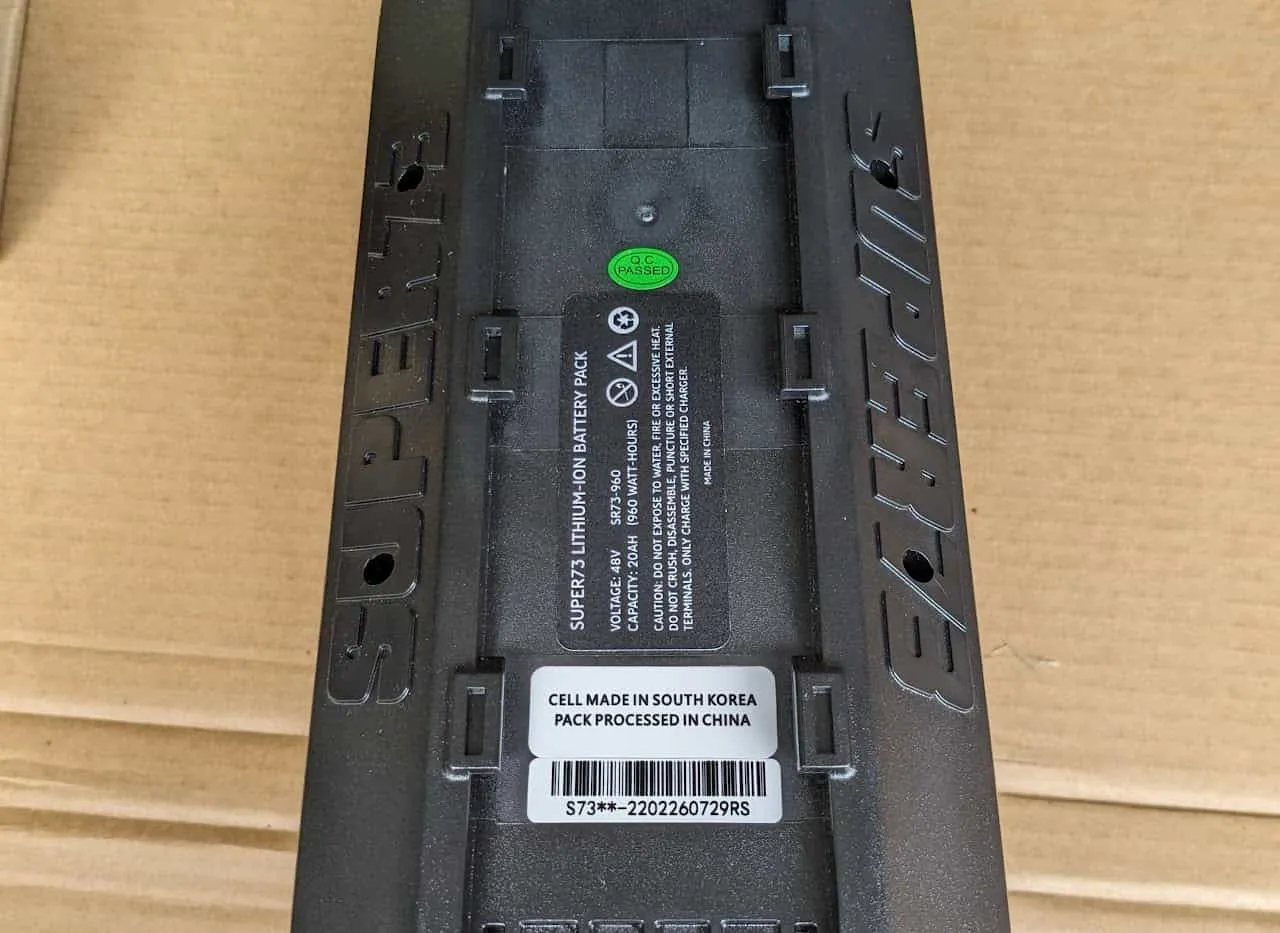

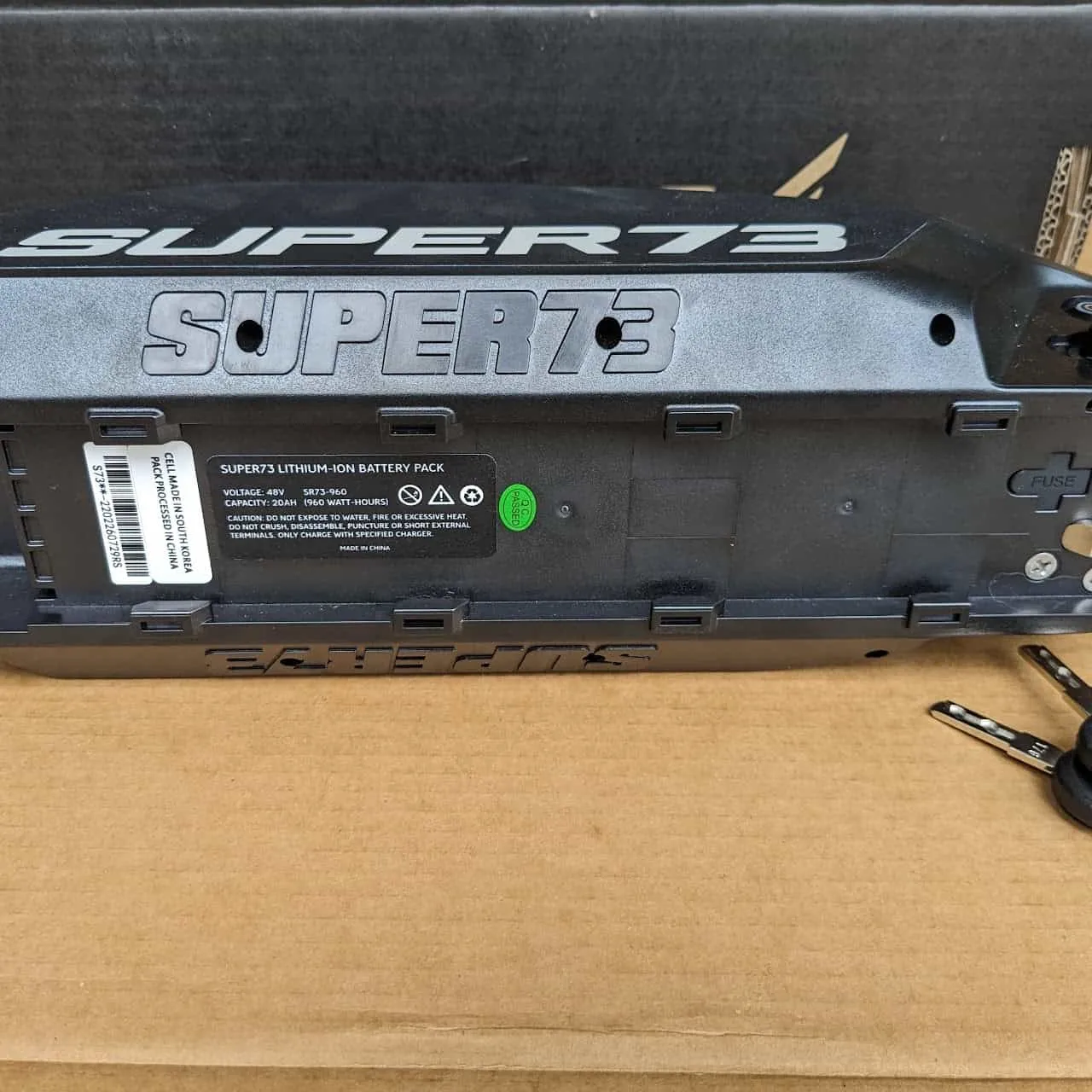

• Model: SR73-960

• 3-Pin Charger Compatibility: 2 amp, 3 amp, 5 amp  (see below for charging port replacement part)

• Voltage: 48V

• Capacity: 20AH

• Watt Hours: 960WH

• Weight: 11.2lbs

• Dimensions

  • Length: 14in

  • Width: 5.5in

  • Height: 4.25in

• Interface

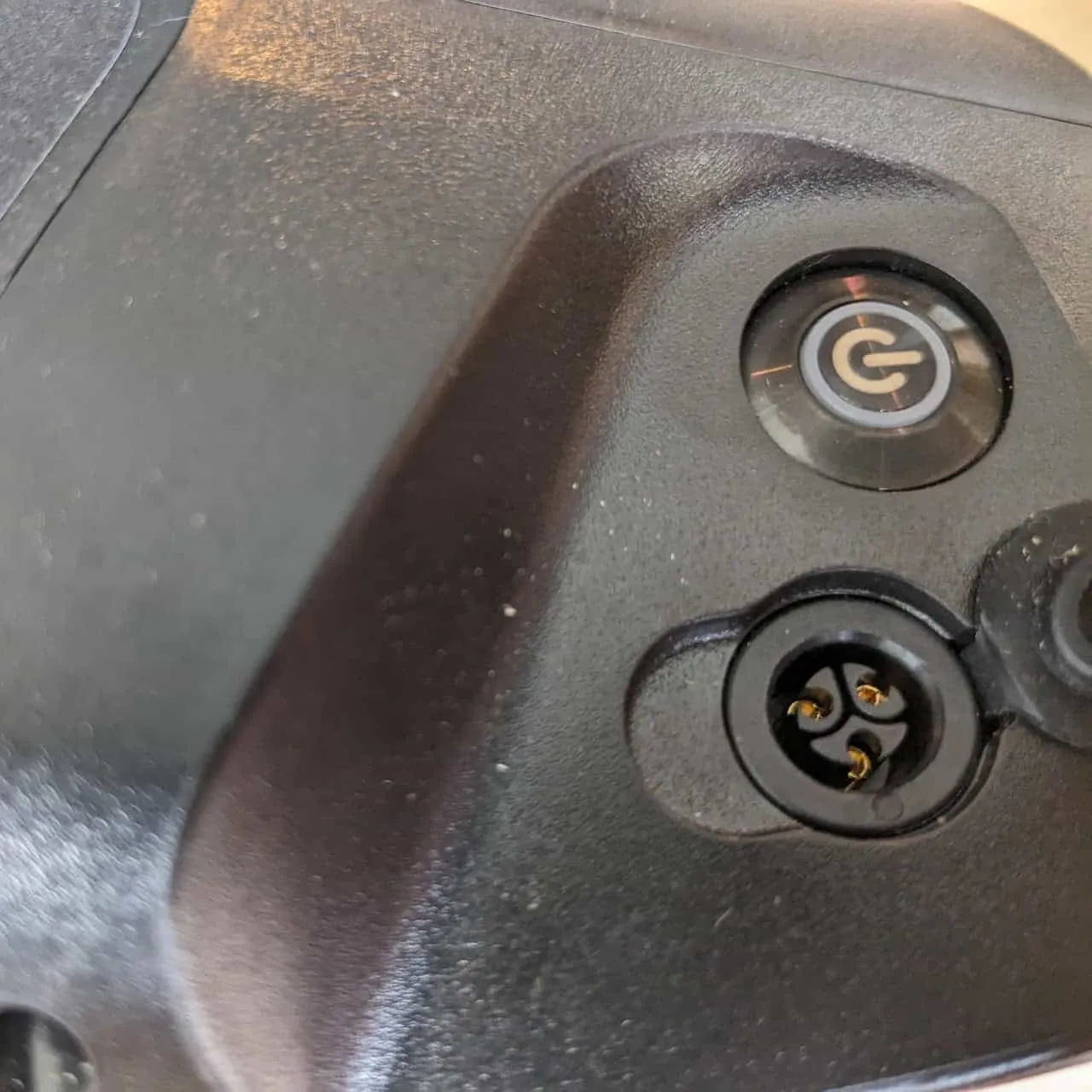

  • 3 pin charging port

replacement battery-side charging port: backfireboardsusa.com, select "charging port - hammer sledge"

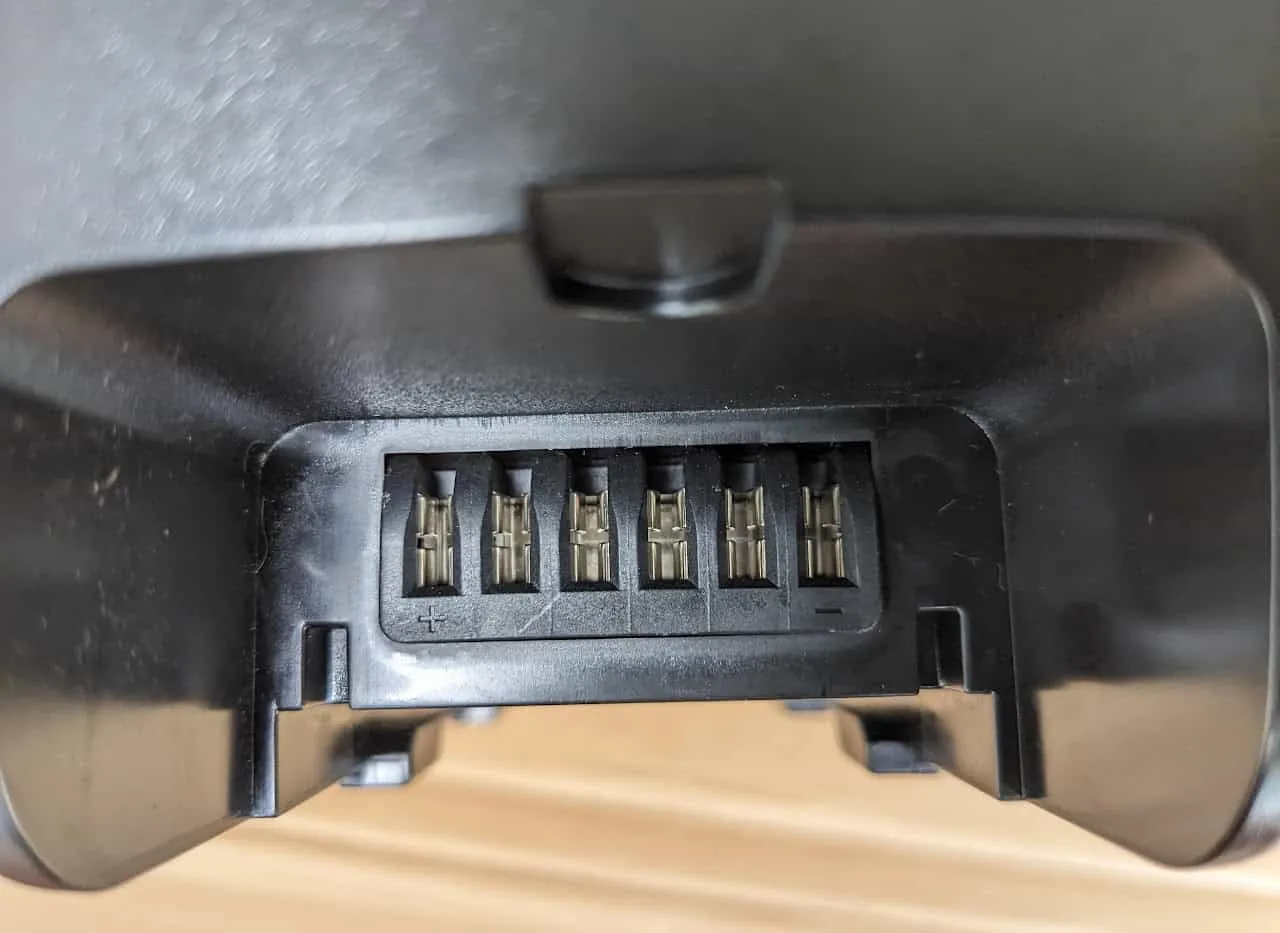

• • 6 female pins labeled + □ □ □ □ -

    1. Positive

    2. Positive

    3. CAN bus CANH - not labeled

    4. CAN bus CANL - not labeled

    5. Negative

    6. Negative

Label is misleading; center 2 pins are CAN

• Notes

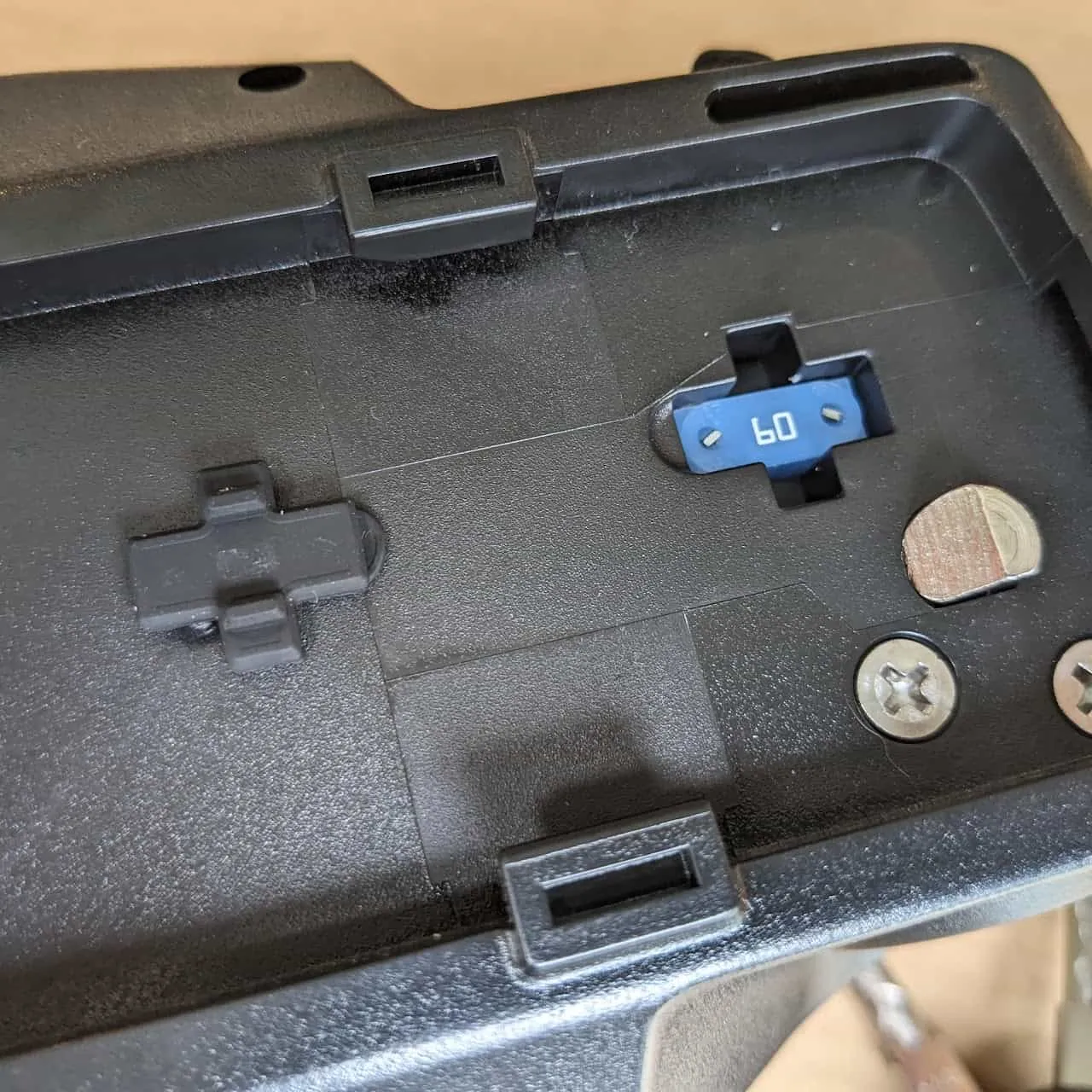

  • 60 amp automotive fuse covered with a rubber cover

  • Battery button back-lights white when turned on

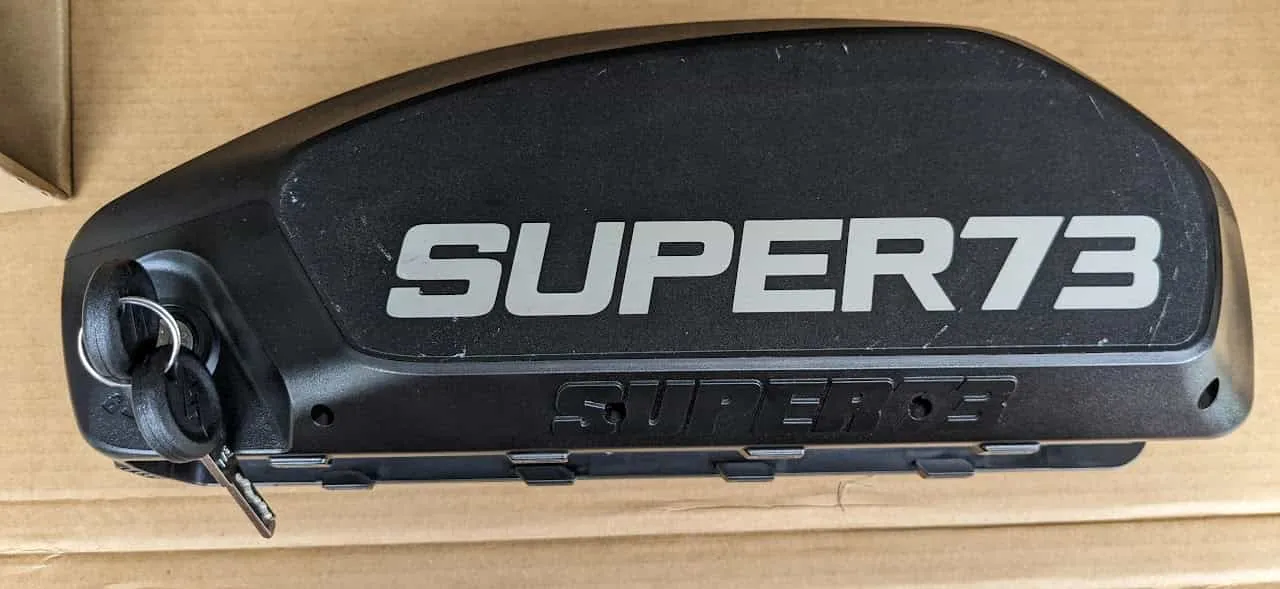

  • Comes with 2 keys

Z Series

• Voltage: 48V

• Capacity: 12.8Ah

• Watt Hours: 615WH

K1D

• Voltage: 48V

• Capacity: 2.9Ah

• Watt Hours: 92.8WH
