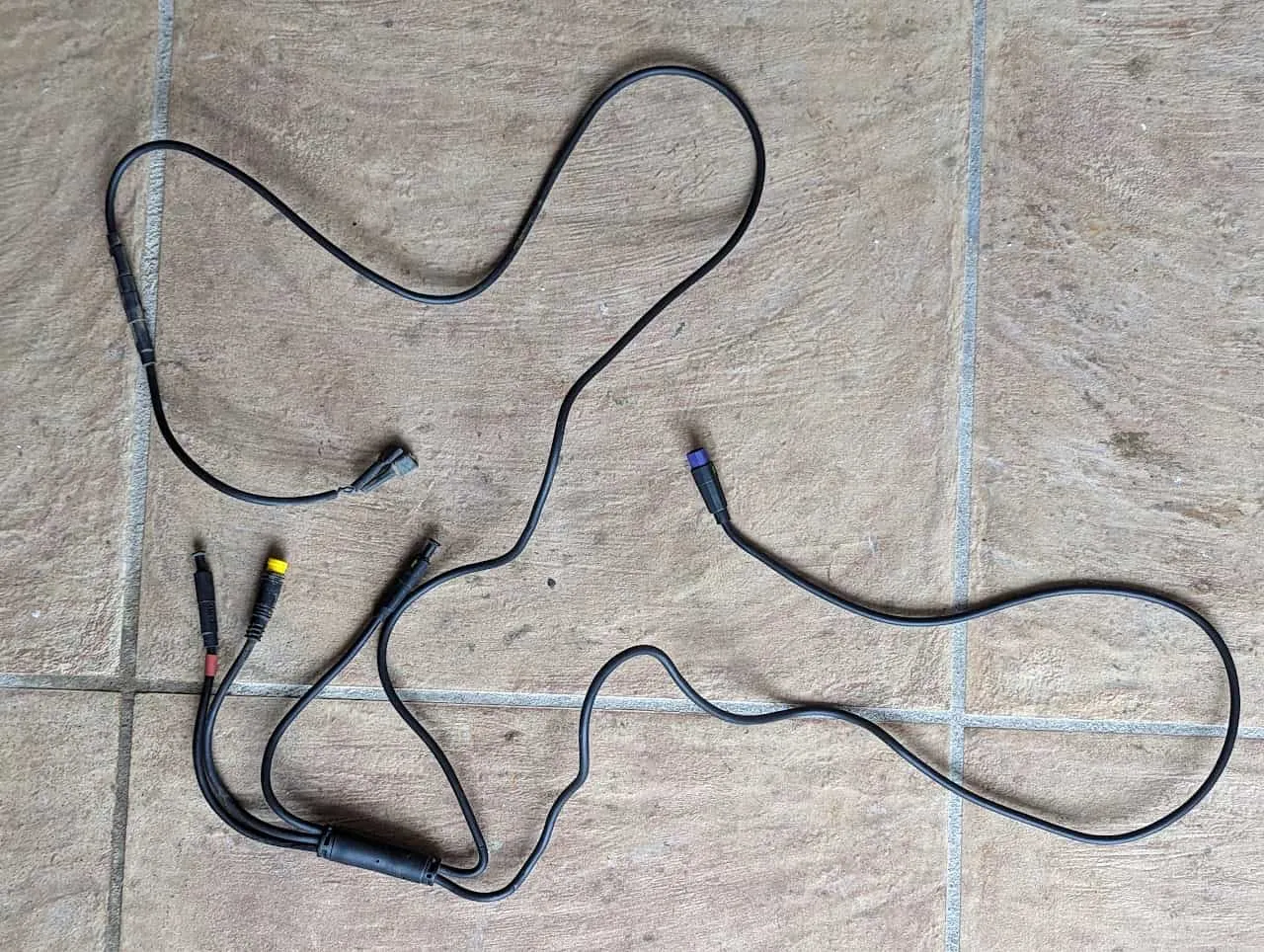

12V Harness
This harness links multiple 12V peripherals to the 12V Module.
Input
1 x Purple 6 poles Mini F male cable connector
Output
1 x Red 2 poles Mini F Male Cable Connector - Horn
1 x Yellow 3 poles Mini B Male Cable Connector - Headlight
2 x Red 2 poles Mini F Female Cable Connector - Turn signals
https://www.higoconnector.com/products/z209fm-p-00-a0-1000/rV99K#title
Cover for Female Mini F Connector https://www.higoconnector.com/products/z209fm/sP99K
Front turn signal connectors? (Unused)
Headlight connector
Turn signal - Turn signal (left) 1
Signal1- Headlight 2
Horn - Horn 2
12V - Headlight 3
GND - Horn 1 / Headlight 1 / Turn signals 2
Turn signal - Turn signal (right) 1

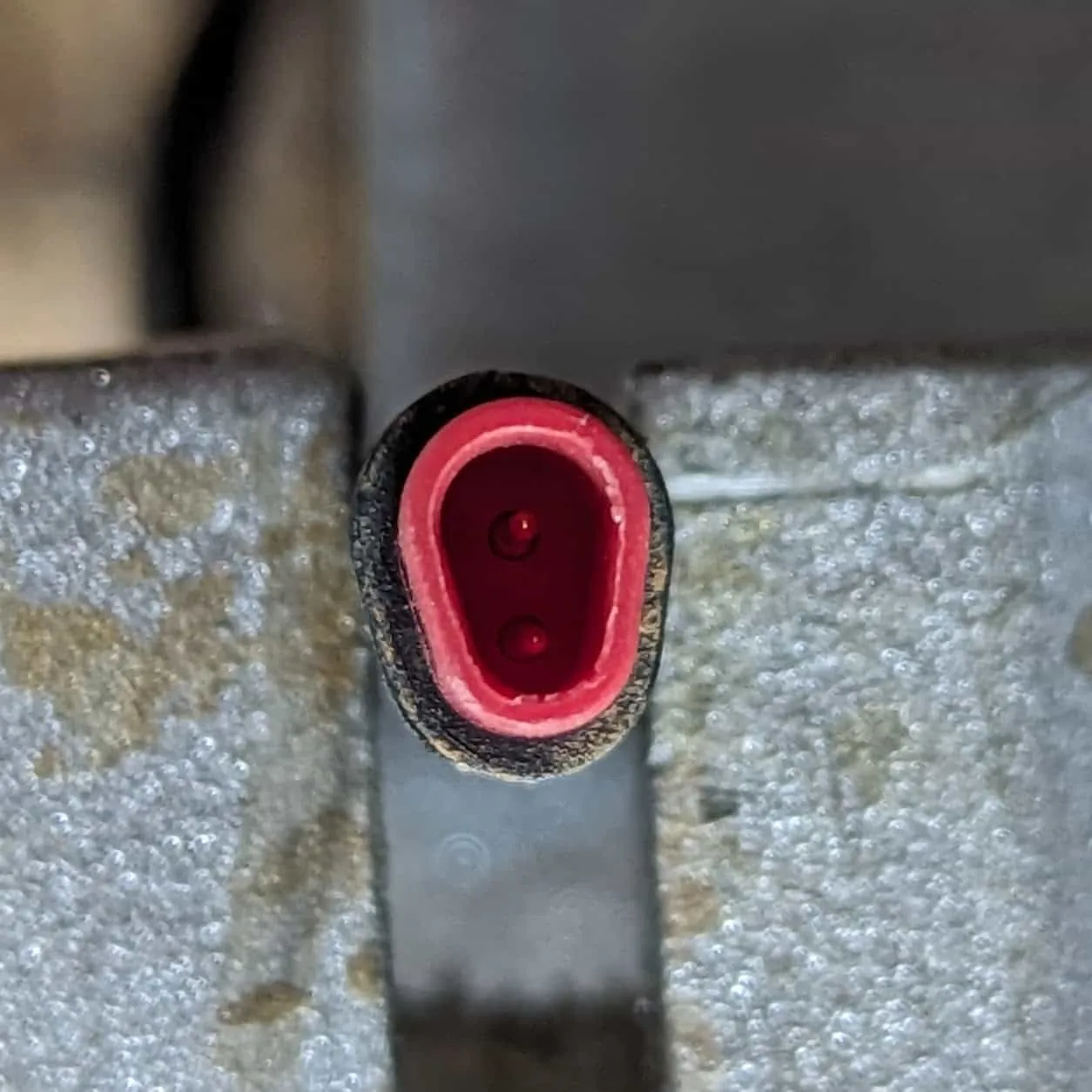

Horn connector
GND
Horn

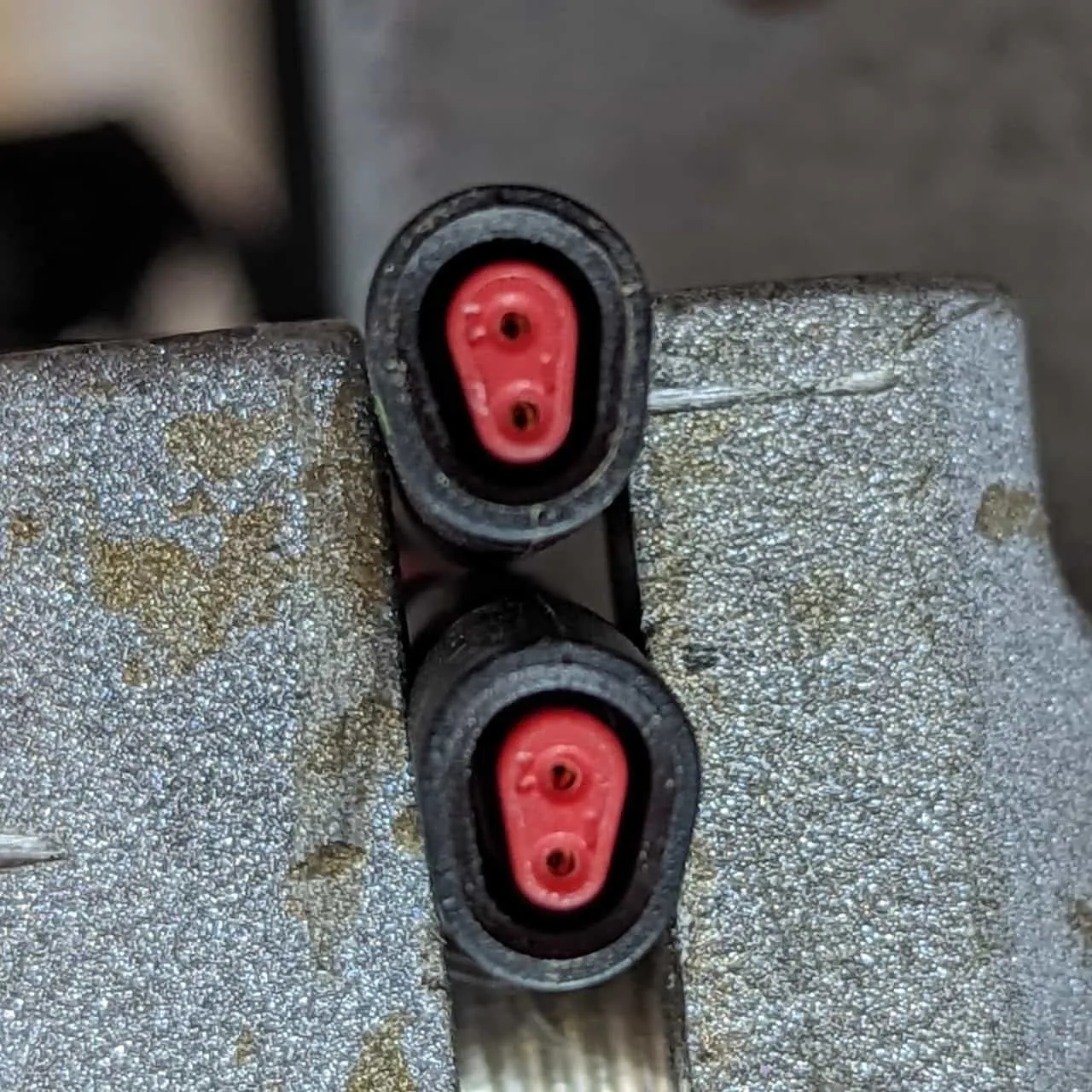

Front turn signal connectors? (Unused)
GND
Turn signal

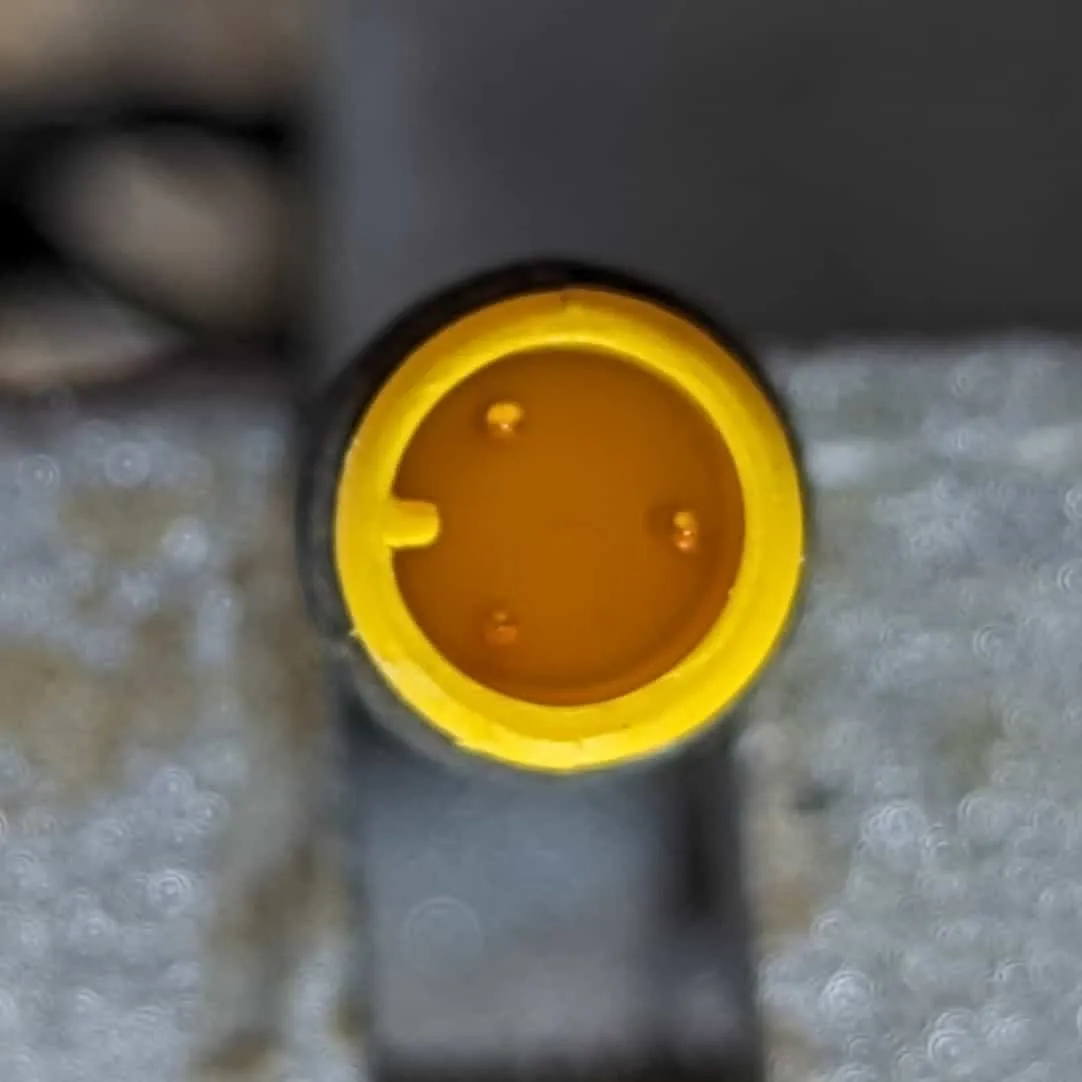

Headlight connector
GND
Signal1
12V
Additional Images

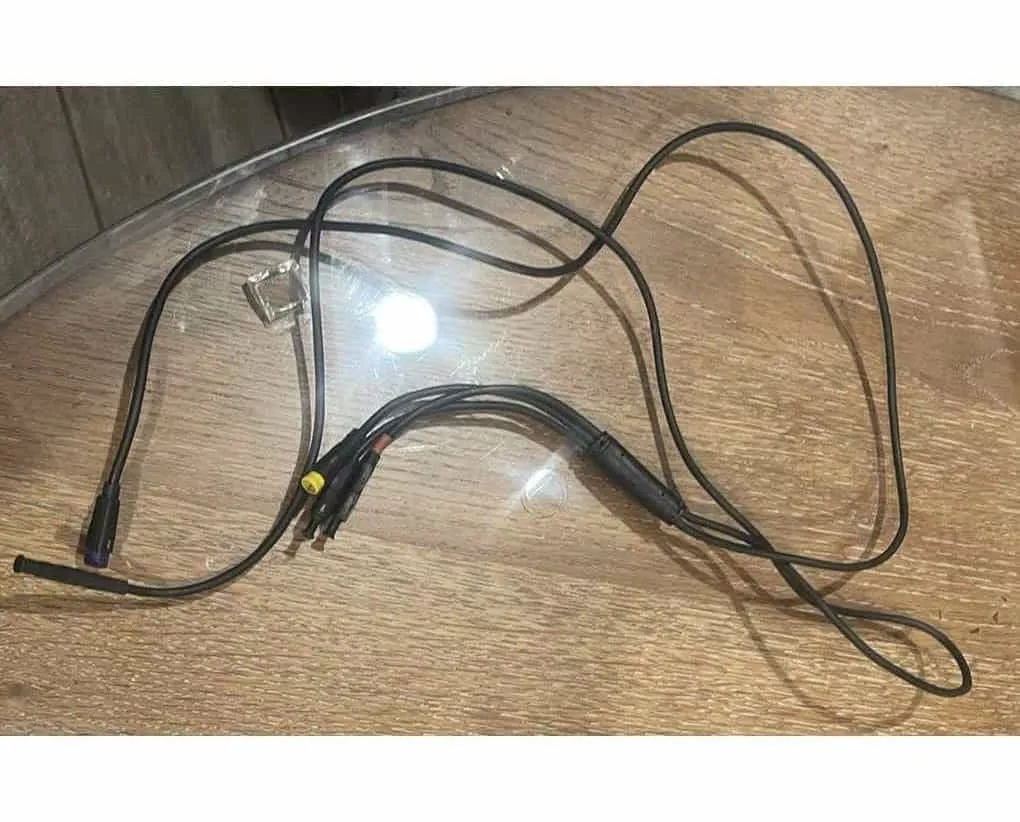

Secondary Lighting Harness; image found on eBay; note the cap for the horn end.

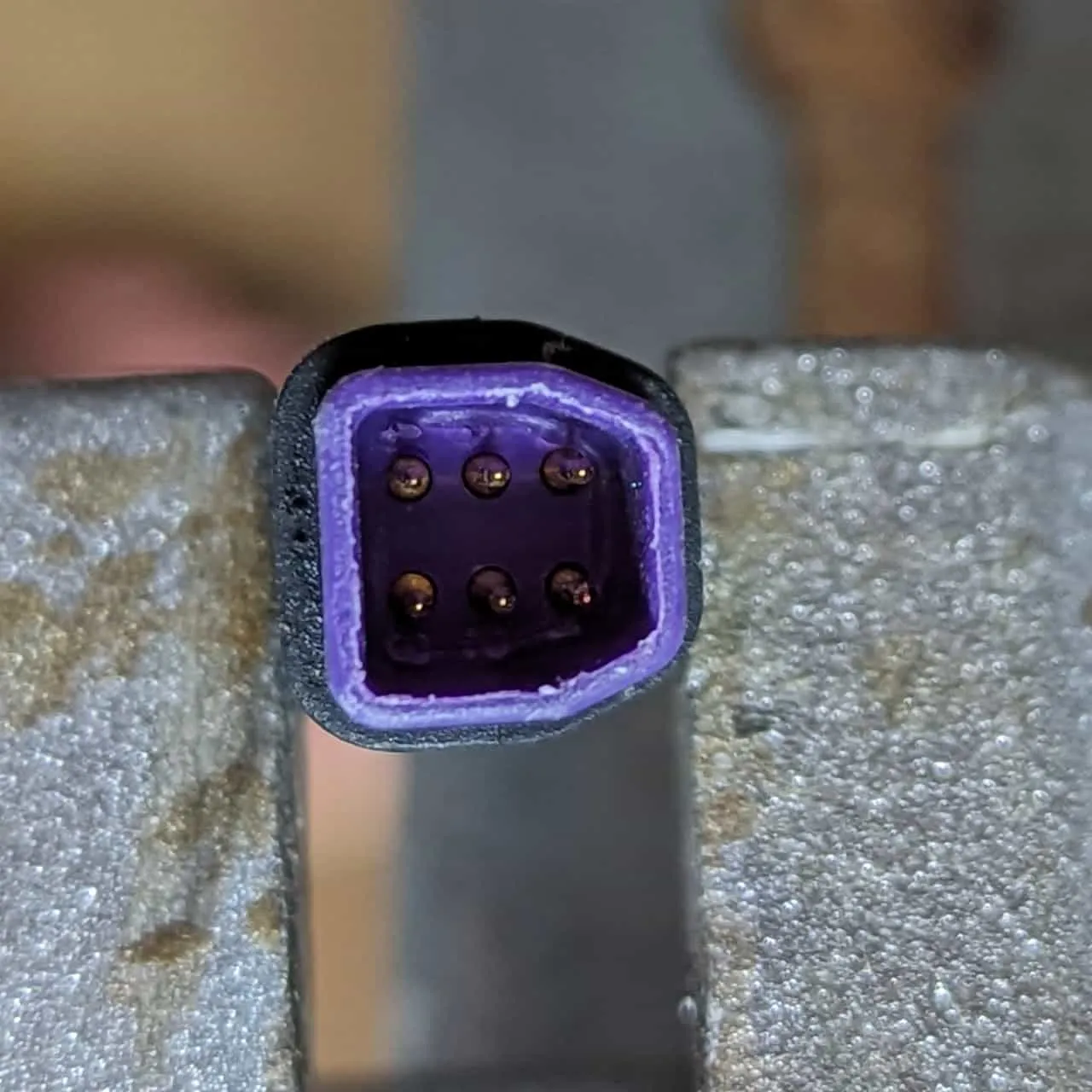

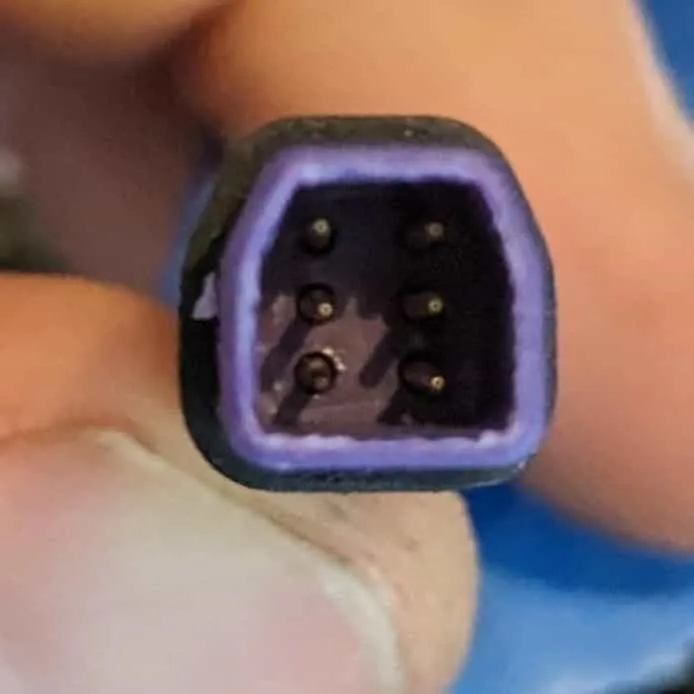

Input for Secondary Lighting Harness.

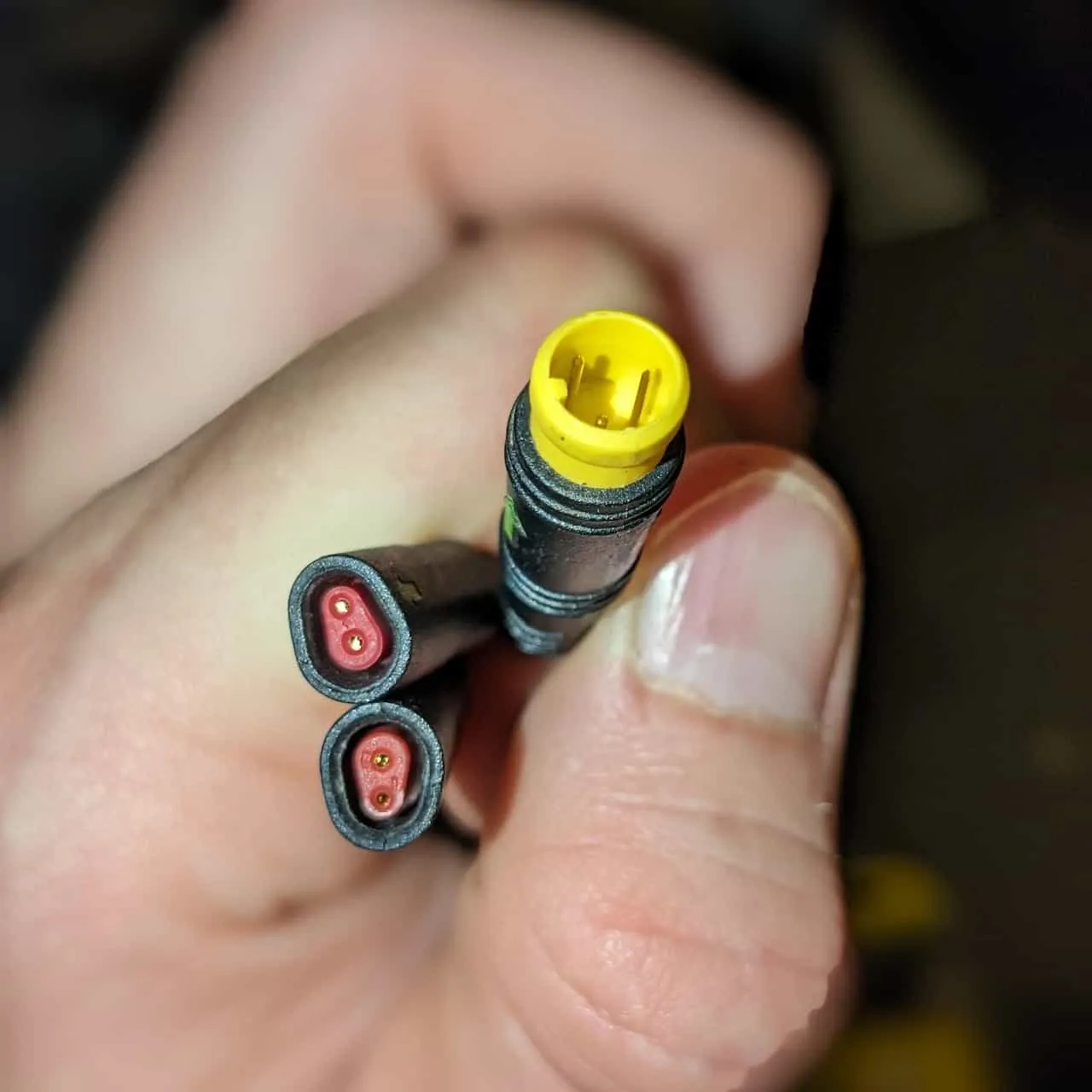

Lighting connectors for headlight and turn signals (capped on the RX).

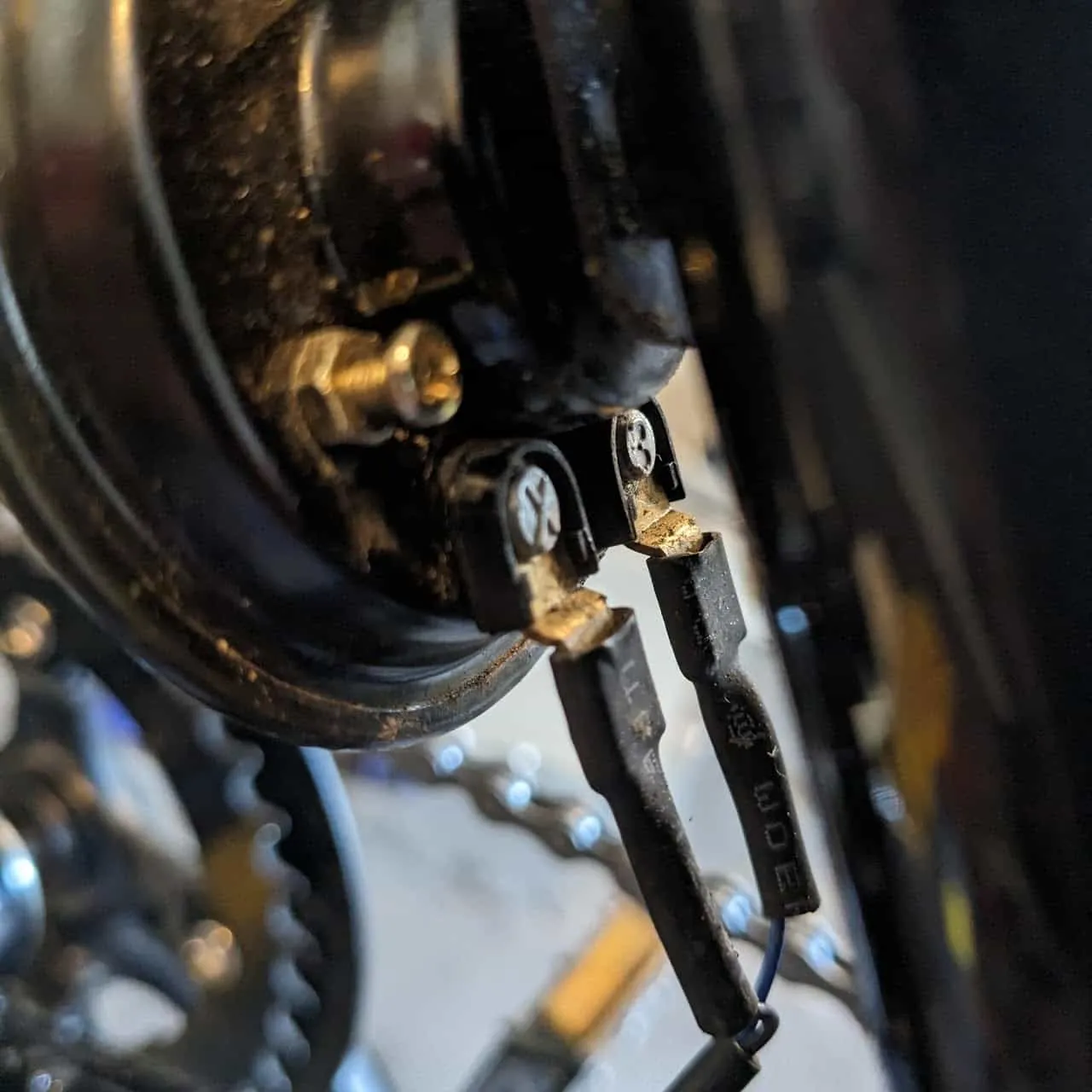

Horn output.
