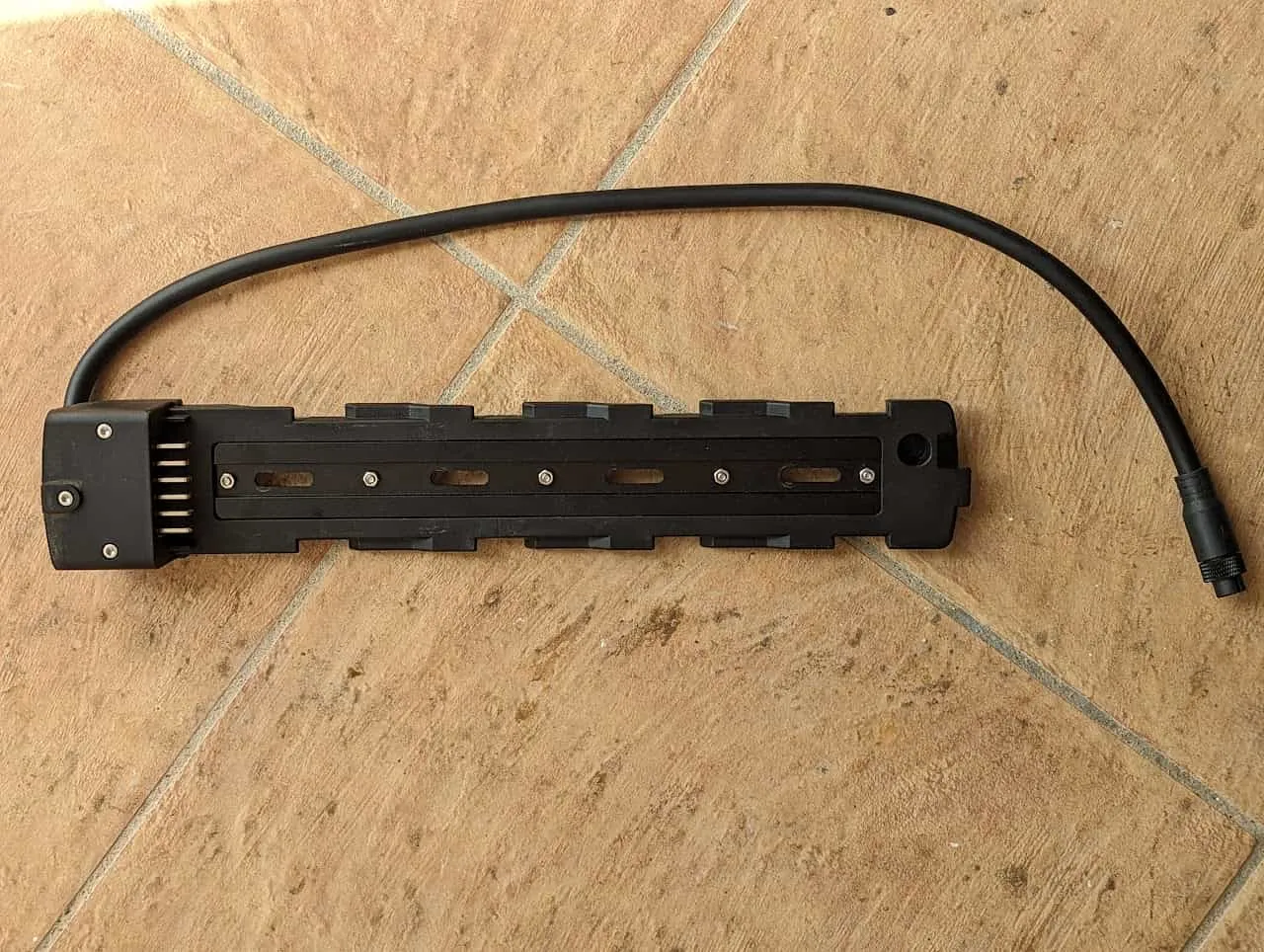

Battery Cradle

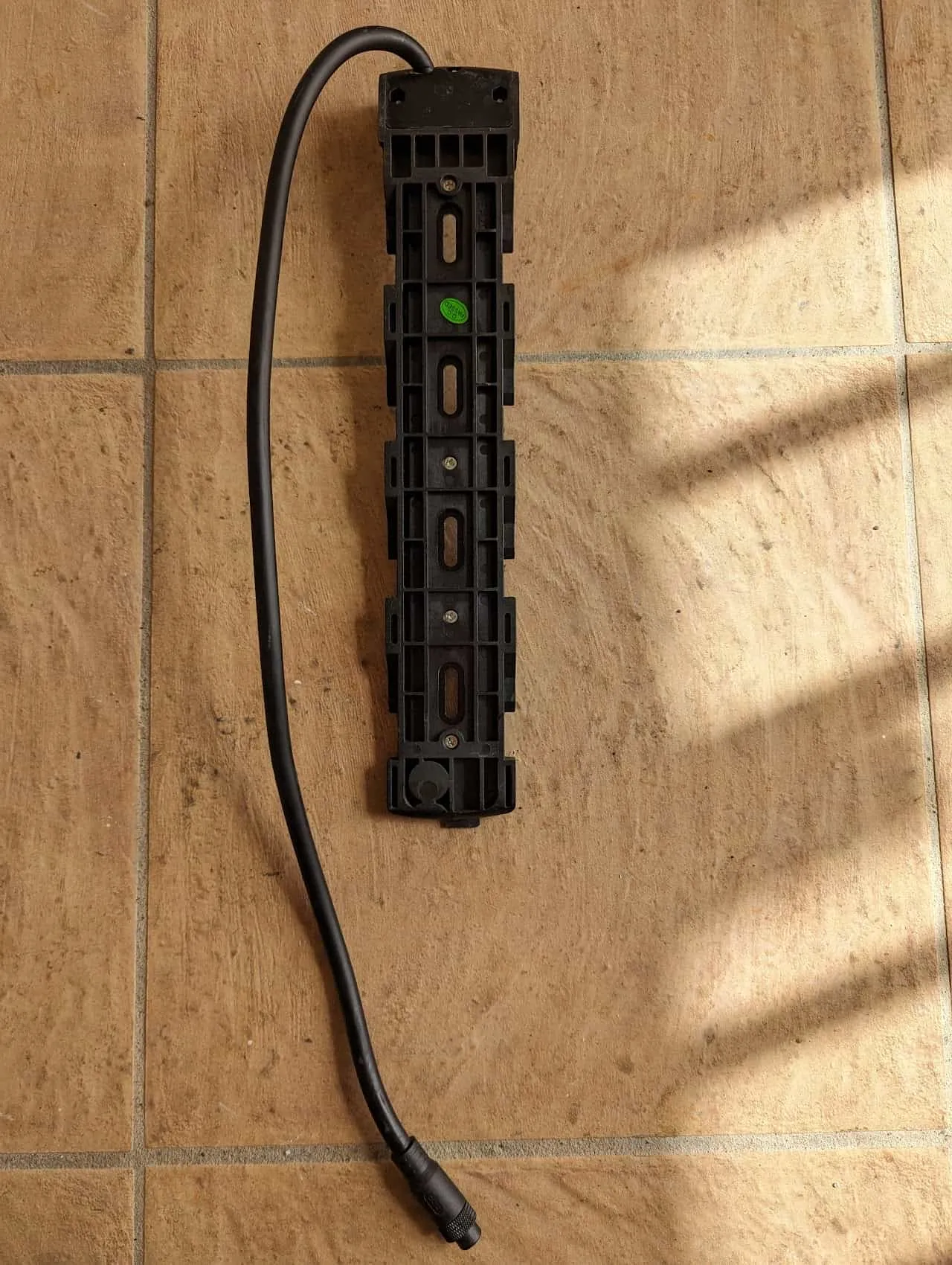

The Battery Cradle secures the battery to the bike and connects it to the controller.

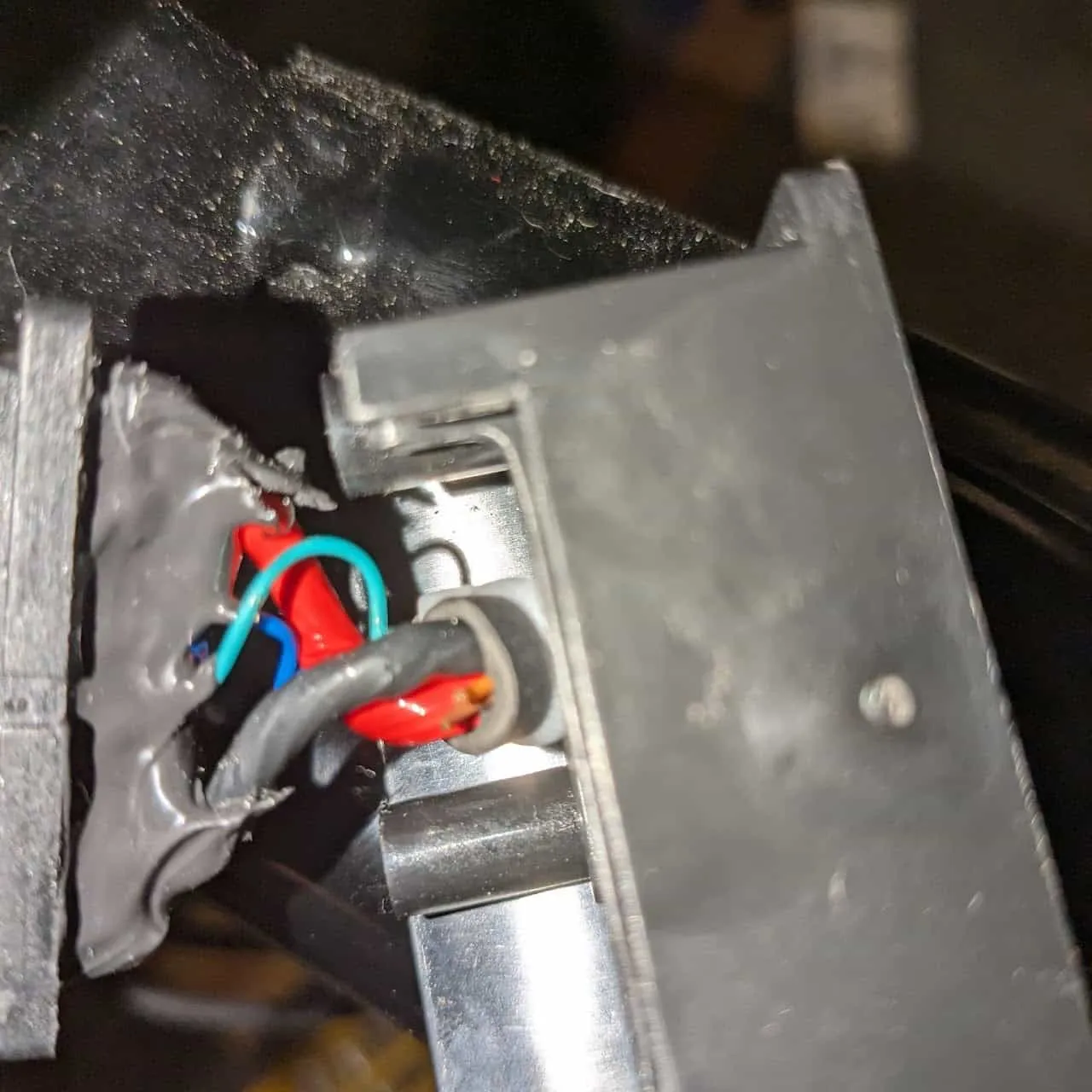

• Interface

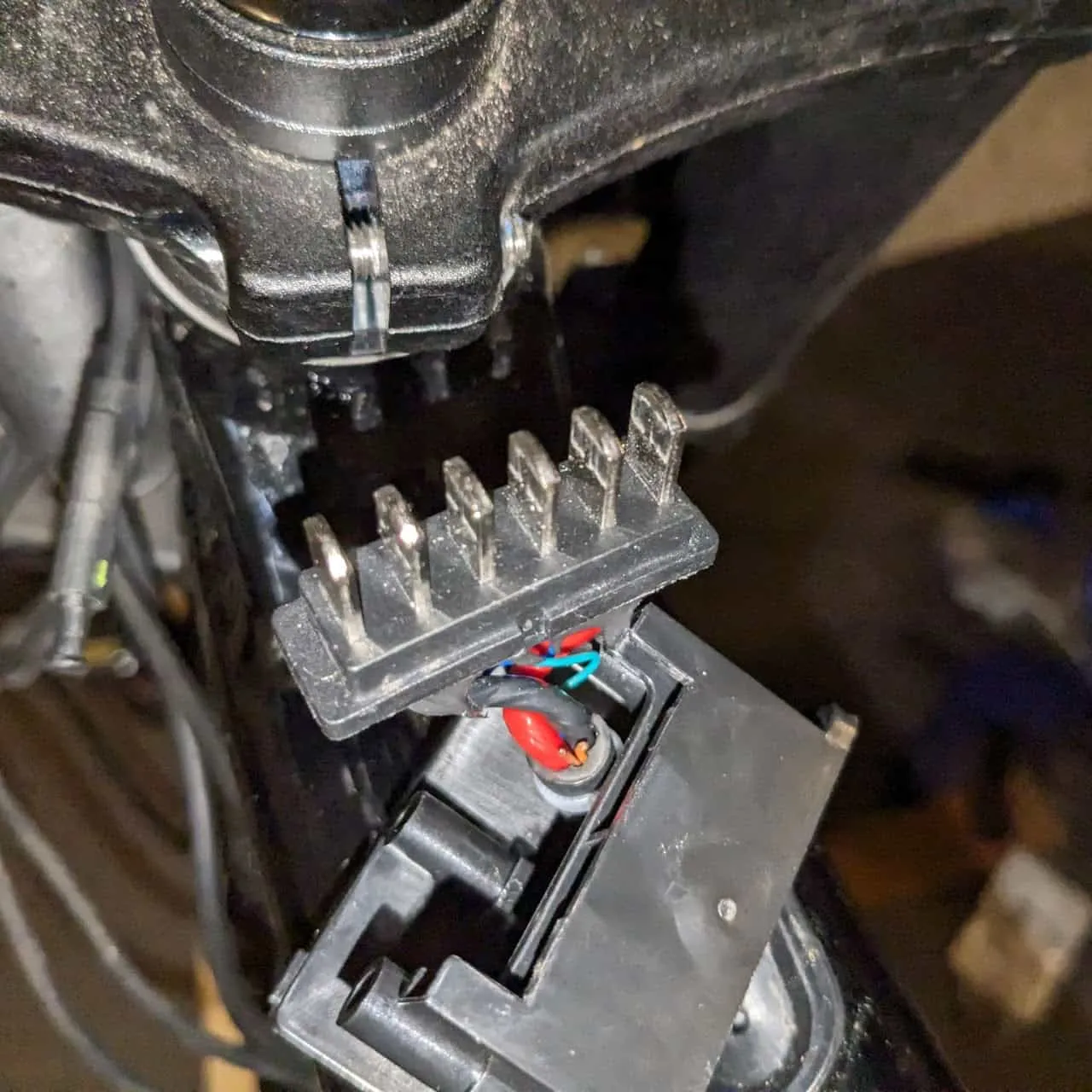

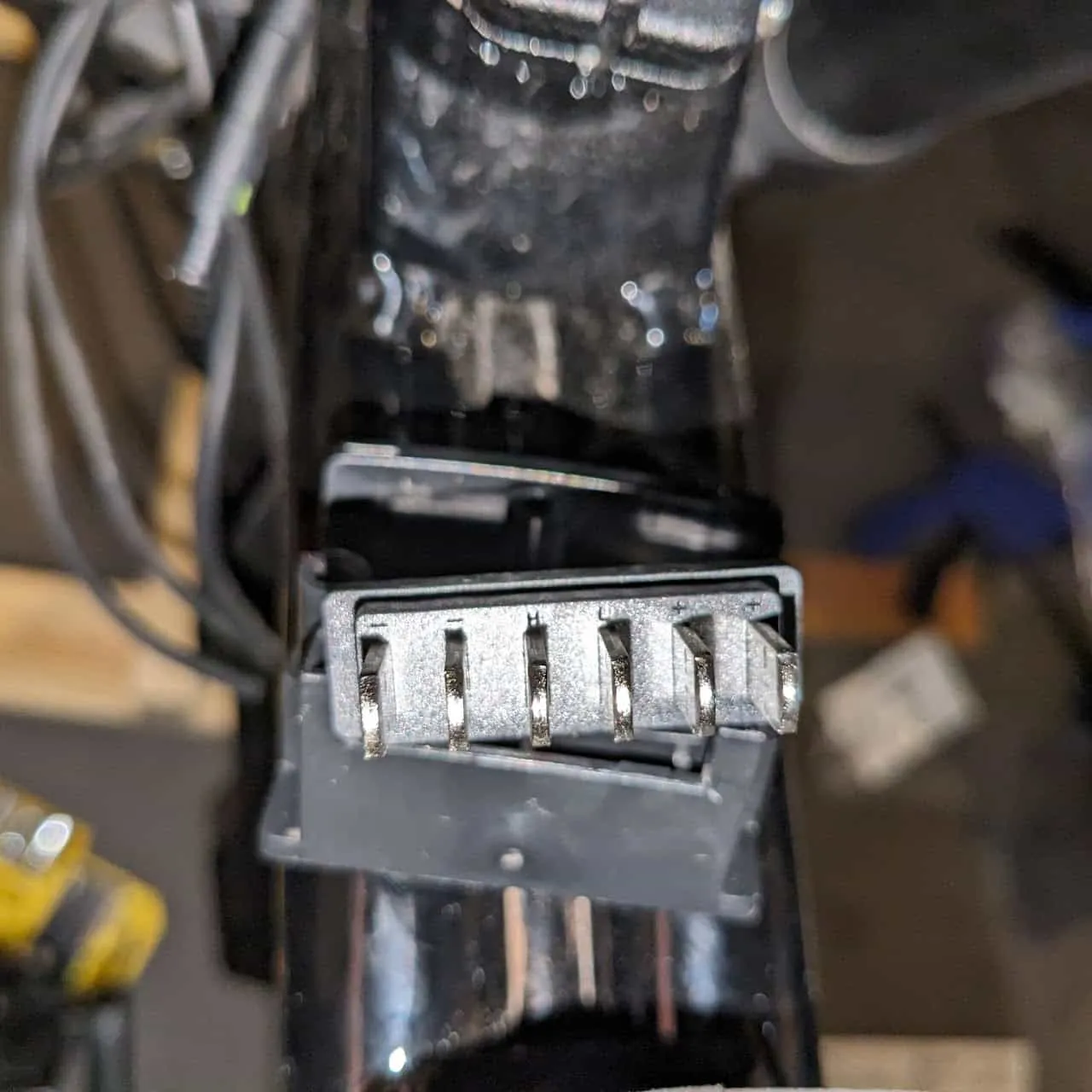

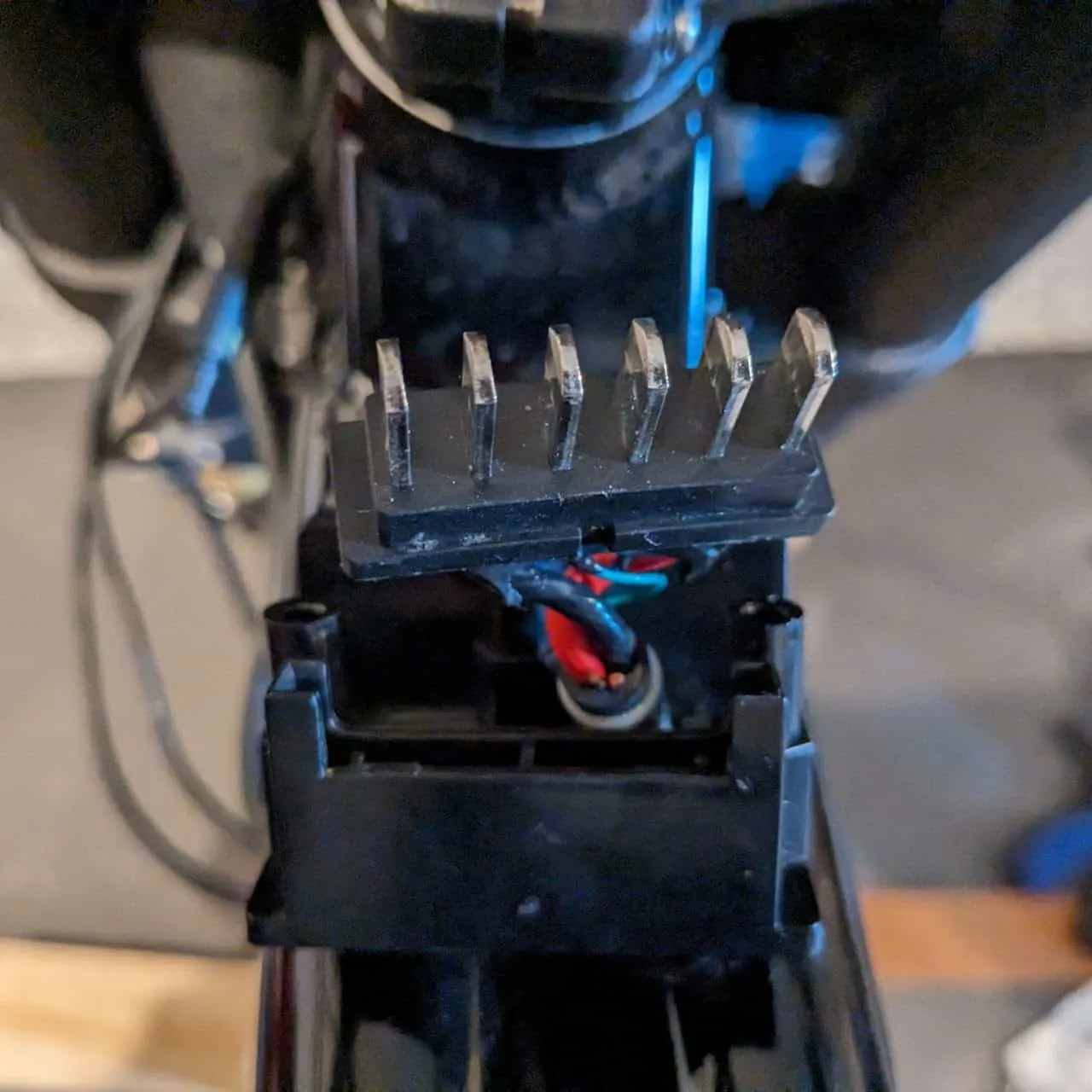

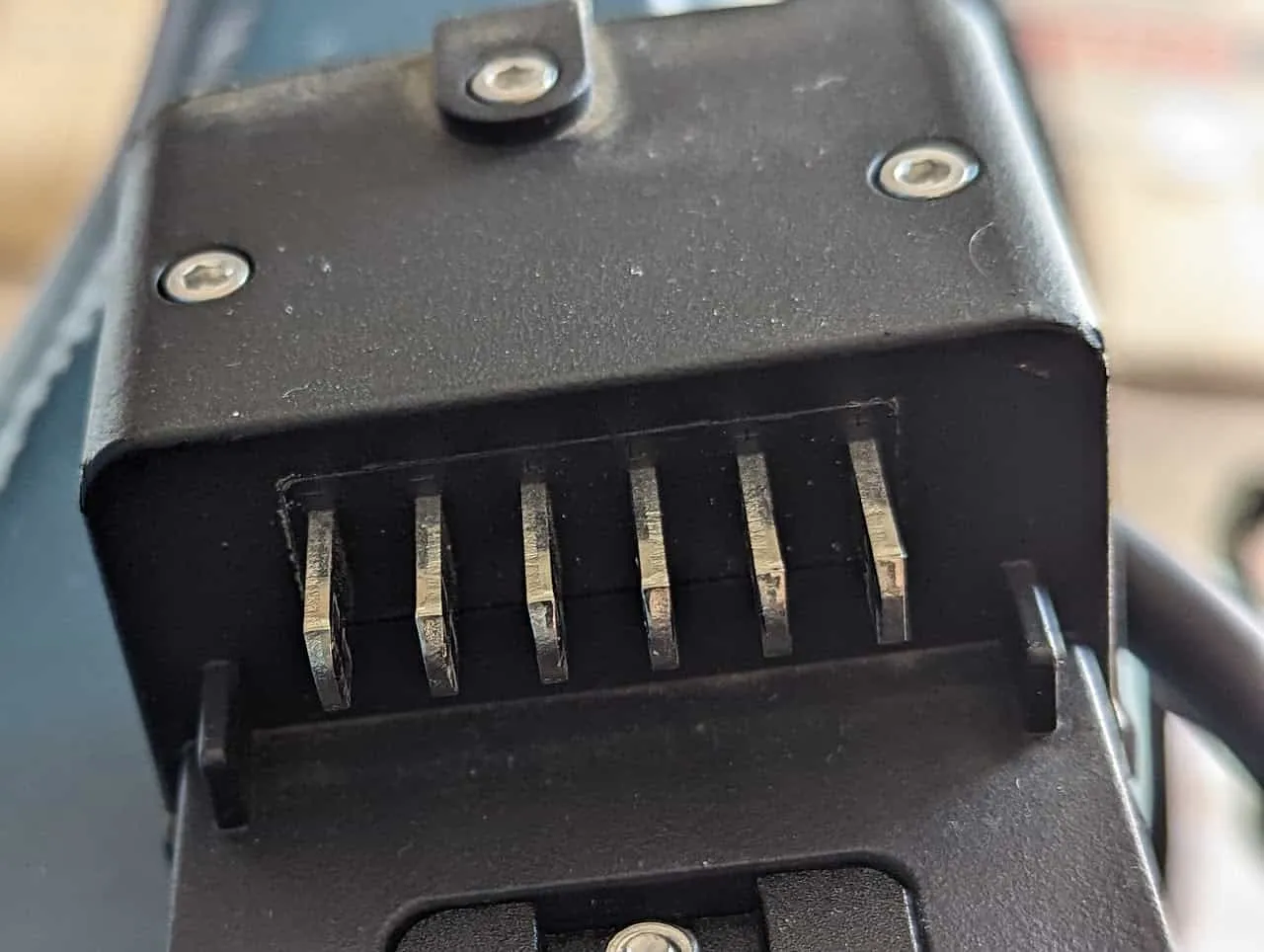

  • 6 male pins labeled - - H L + +

    1. thick black - negative

    2. thick black - negative

    3. green - CAN bus CANH

    4. blue - CAN bus CANL

    5. thick red - positive

    6. thick red - positive

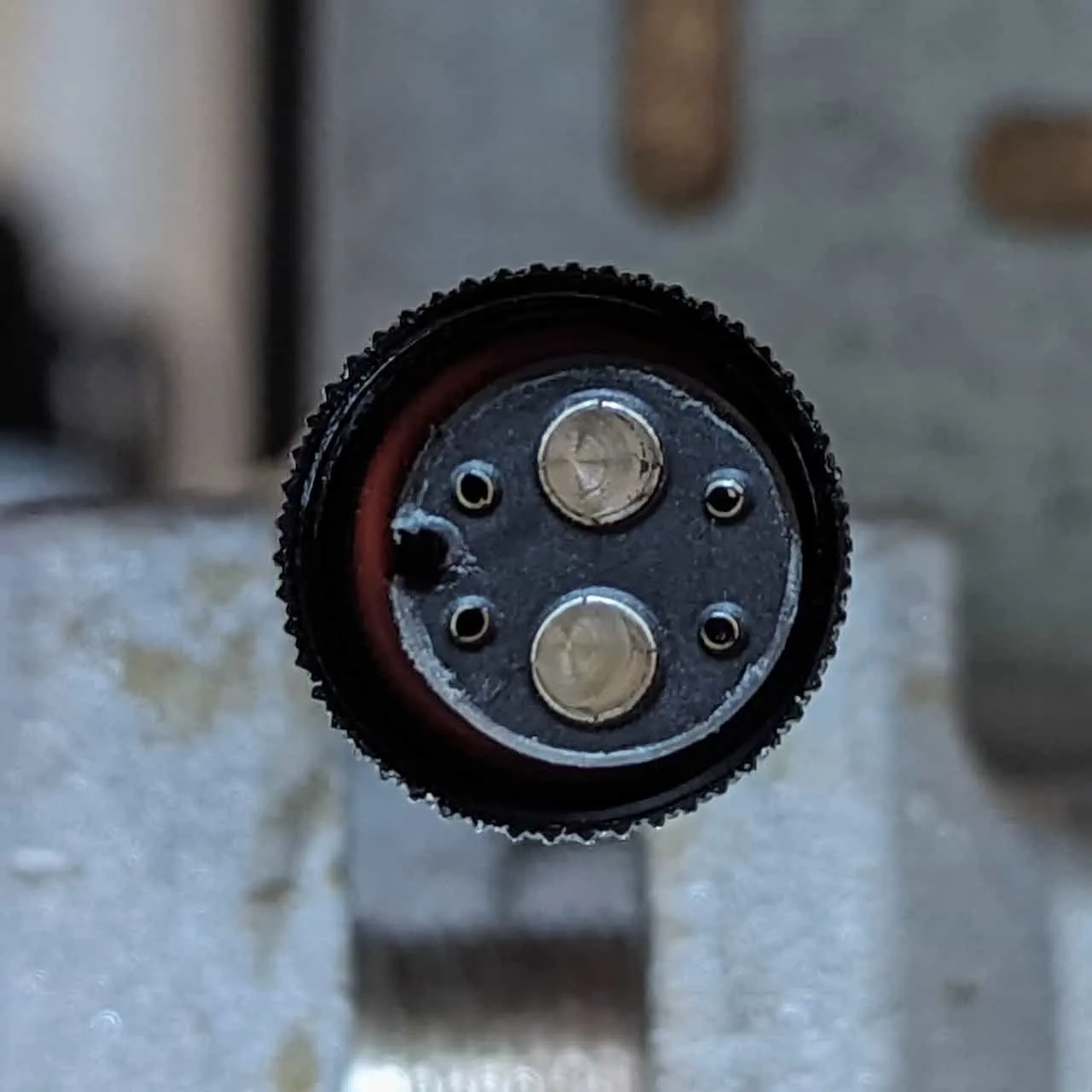

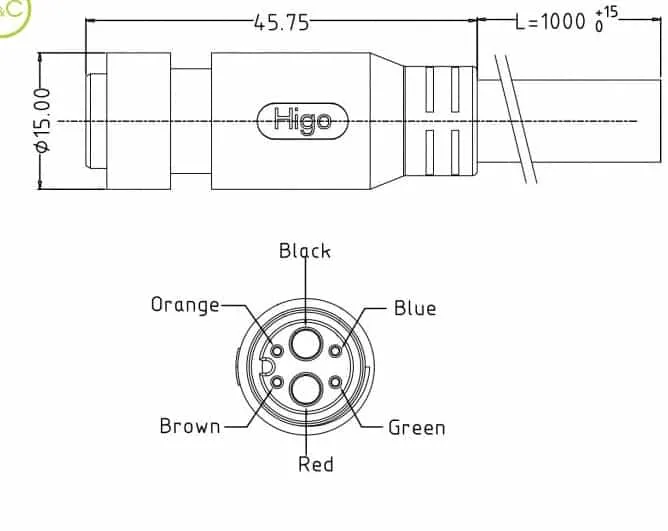

  • Cable - L615AM Female

    1. https://www.higoconnector.com/products/l615am-p-00-dc-1000/hw99K#title

• Screws

  • 4 x ?? (3mm hex) - frame

  • 3 x ?? (2.5mm hex) - cradle
